(Factory Refurbished) GIGABYTE Z390 AORUS ELITE LGA 1151 Intel ATX Motherboard for Sale

(Factory Refurbished) GIGABYTE Z390 AORUS ELITE LGA 1151 Intel ATX Motherboard For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

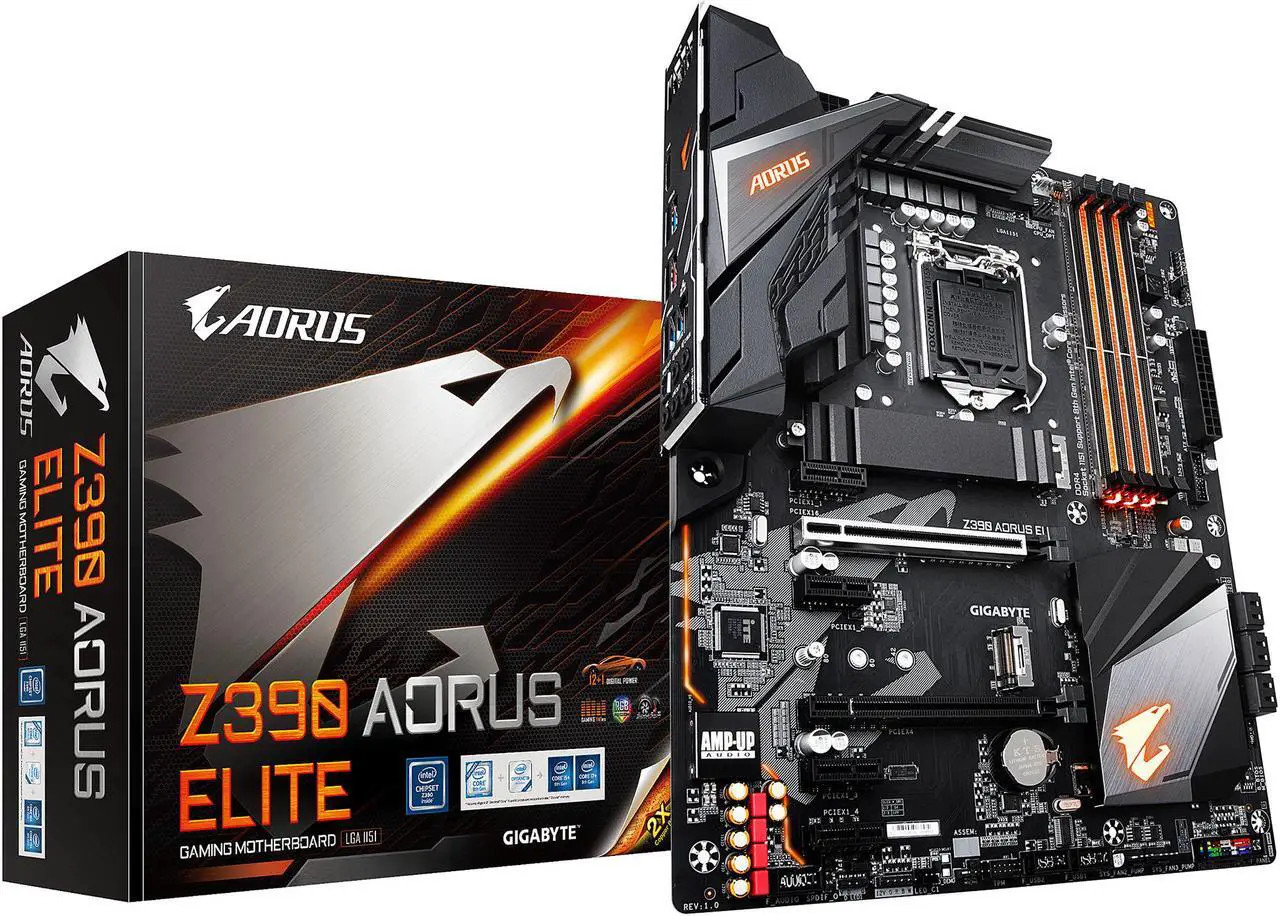

(Factory Refurbished) GIGABYTE Z390 AORUS ELITE LGA 1151 Intel ATX Motherboard:
$199.99

GIGABYTE manufacturer refurbished unit, comes with SATA cable, I/O shield ONLY, repacked with white color GIGABYTE service box.
ModelBrandGIGABYTEModelZ390 AORUS ELITESupported CPUCPU Socket TypeLGA 1151 (300 Series)CPU TypeSupports 9th / 8th Gen Intel Core processors *
Supports Intel Pentium / Celeron processors ** Not backward compatible with older generation of LGA 1151 CPUsChipsetsChipsetIntel Z390Onboard VideoOnboard Video ChipsetSupported only by CPU with integrated graphicMemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardDDR4 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133Maximum Memory Supported128GBChannel SupportedDual ChannelExpansion SlotsPCI Express 3.0 x162 x PCI Express 3.0 x16PCI Express x14 x PCI Express 3.0 x1 ** The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x2 mode.Storage DevicesSerial ATA (SATA)6 x SATA 6Gb/sM.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)Intel Optane ReadyYesSATA RAID0/1/5/10Onboard AudioAudio ChipsetRealtek ALC1220-VB codecAudio Channels7.1 ChannelsOnboard LANLAN ChipsetIntel GbE LAN chipMax LAN Speed1GbpsRear Panel PortsBack I/O Ports4 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacksInternal I/O ConnectorsOnboard USB1 x USB Type-C port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headersOther Connectors1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan/water cooling pump headers
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt add-in card connector
1 x Clear CMOS jumperSoftware FeatureWindows 11SupportedPhysical SpecForm FactorATXLED LightingRGBDimensions (W x L)12.0" x 9.6"Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connectorFeaturesFeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:
iTE I/O Controller ChipH/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress InstallBundle Software:
Norton Internet Security (OEM version)
cFosSpeedOperating System:
Support for Windows 10 64-bit
