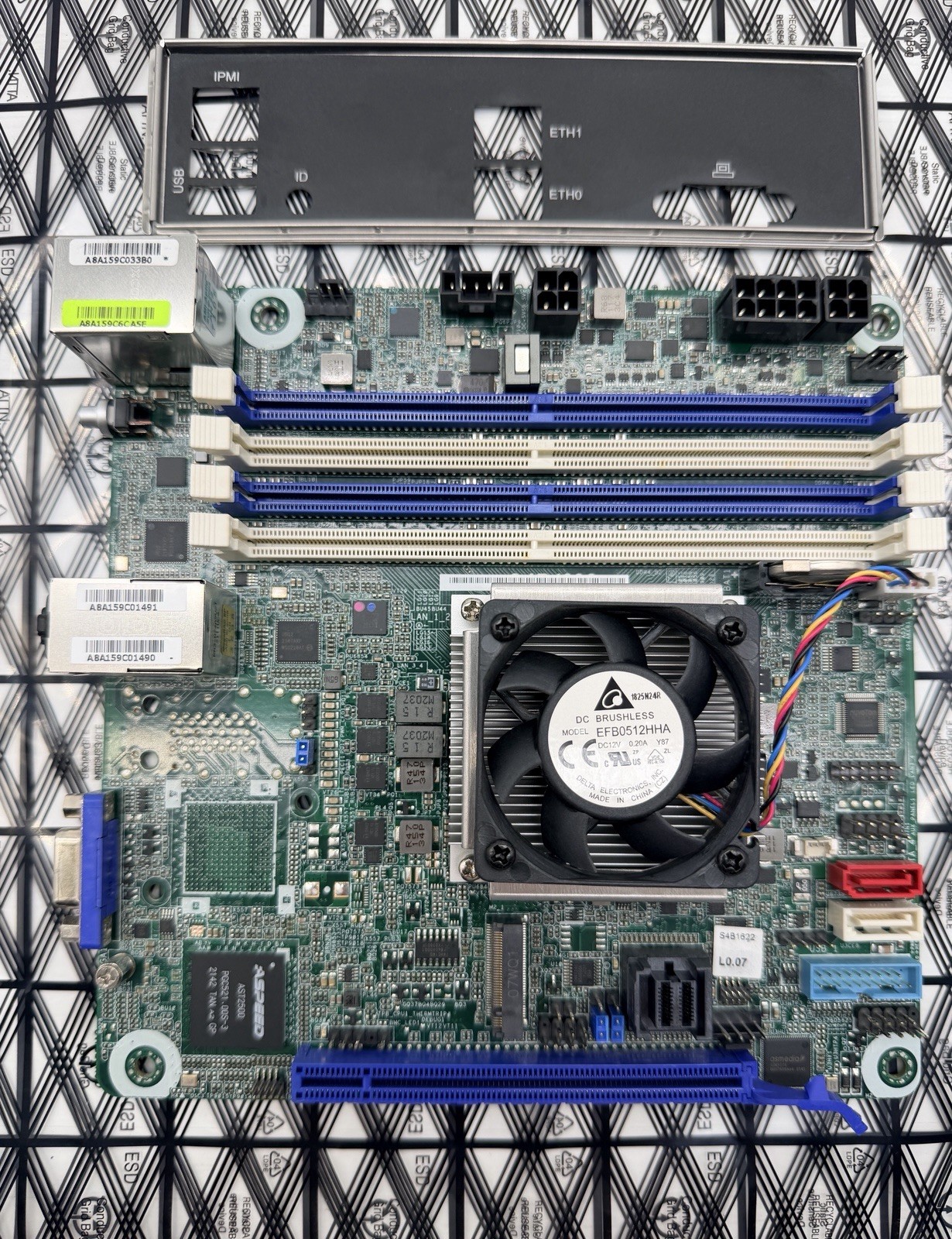

ASRock Rack D1622D4I Datto S4B1622 : Intel Xeon D-1622 ITX Motherboard for NAS:
$194.95

Ships Same or next business day
SpecificationsPhysical StatusForm Factor- mini-ITXDimensions- 6.7'' x 6.7'' (170.2 mm x 170.2 mm)Processor SystemCPU- Supports Intel® Xeon® D 1600 ProcessorChipset- SocSystem MemorySupported DIMM Quantity- 4x DDR4 DIMM slots
- Supports up to 128GB DDR4 ECC RDIMM
- Supports up to 64GB DDR4 ECC UDIMMMax. Capacity per DIMM- ECC UDIMM: 4GB, 8GB, 16GB
- RDIMM: 4GB, 8GB, 16GB, 32GBMax. DIMM Frequency- ECC UDIMM: 1600, 1866, 2133MHz
- RDIMM: 1600, 1866, 2133MHzVoltage- 1.2VPCIe Expansion Slots (SLOT7 close to CPU)PCIe x 16- SLOT7: PCIe3.0 x16M.2- 1 slot (PCIE, support form factor: 2280)SATA/SAS StoragePCH Built-in Storage- 6 x SATA3 6Gb/s (4 port from mini SAS HD, 2 ports SATA 7pin, SATA_4 supports DOM)Additional SAS Controller- 1 (SATA_0_3)EthernetInterface- 10000 / 1000 /100 MbpsAdditional Ethernet Controller- 2 x RJ45 GLAN by Intel® i210
- 2 x RJ45 10GLAN by Intel® X557-AT2 (D1600D4I-2L2T only)
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXEServer ManagementBMC Controller- ASPEED AST2500Dedicated IPMI LAN- 1 x Realtek RTL8211E for dedicated management GLANFeatures- Watch Dog
- IPMI (Intelligent Platform Management Interface) v.2.0
- Virtual media over LAN function
- KVM over LAN functionGraphicsController- ASPEED AST2500VRAM- DDR4 16MBOutput- Supports D-Sub with max. resolution up to 1920x1200 @ 60HzRear I/OUID Button/LED- 1Video Port- 1 x D-SubUSB 3.2 Gen1 Port- 2 Type-A (USB3.2 Gen1)RJ45- RJ45: 2x 10GLAN(by Intel® X557-AT2 )(D1600D4I-2L2T only) + 2x GLAN(by Intel® i210)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)Internal Connector/HeadersPower Connector- 1 x (4-pin) + 1 x (8-pin) support 12V DC-INOther Power Connectors- 1 (4-pin,SATA Power for DC-IN mode), 1 (3-pin, SATA DOM Power)
*Caution: Misconnection between the ATXPWR1 and the HDDPWR1 con- nectors may permanently damage the motherboard.Auxiliary Panel Header- 1 (includes chassis intrusion, 2 front LAN LED, System LED)System Panel- 1Speaker Header- 1Fan Header- 4TPM Header- 1SGPIO Header- 1PMBus header- 1Clear CMOS- 1 (short pad)USB 3.2 (Gen1) Header- 1 (19-pin, 2 USB 3.2 Gen1)System BIOSBIOS Type- 16MB AMI UEFI Legal BIOSBIOS Features- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant FlashHardware MonitorTemperature- CPU/PCH/DDR/LAN/Storage Temperature Sensing
- MB/Card side Temperature SensingFan- Fan Tachometer
- Fan Multi-Speed Control
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)Voltage12V, +5V, +3.3V, CPU Vcore, DRAM, +1.5V,+1.05V, +BAT, 3VSB, 5VSBSupported OSOSLinux
- Red Hat Enterprise Linux Server 7.7 (64 bit) / 8.1 (64 bit)
- CentOs 7.7 (64 bit) / 8.1 (64 bit)
- SUSE Enterprise Linux Server 12 SP4 (64 bit) / 15 SP1 (64 it)
- Fedora 30 (64 bit)
- FreeBSD 11.3 (64 bit)
- Ubuntu 19.10 (64 bit)

* Please refer to our website for the latest OS support list.EnvironmentTemperatureOperating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°CHumidity- Non-operating humidity: 20% ~ 90% (non-condensing)
