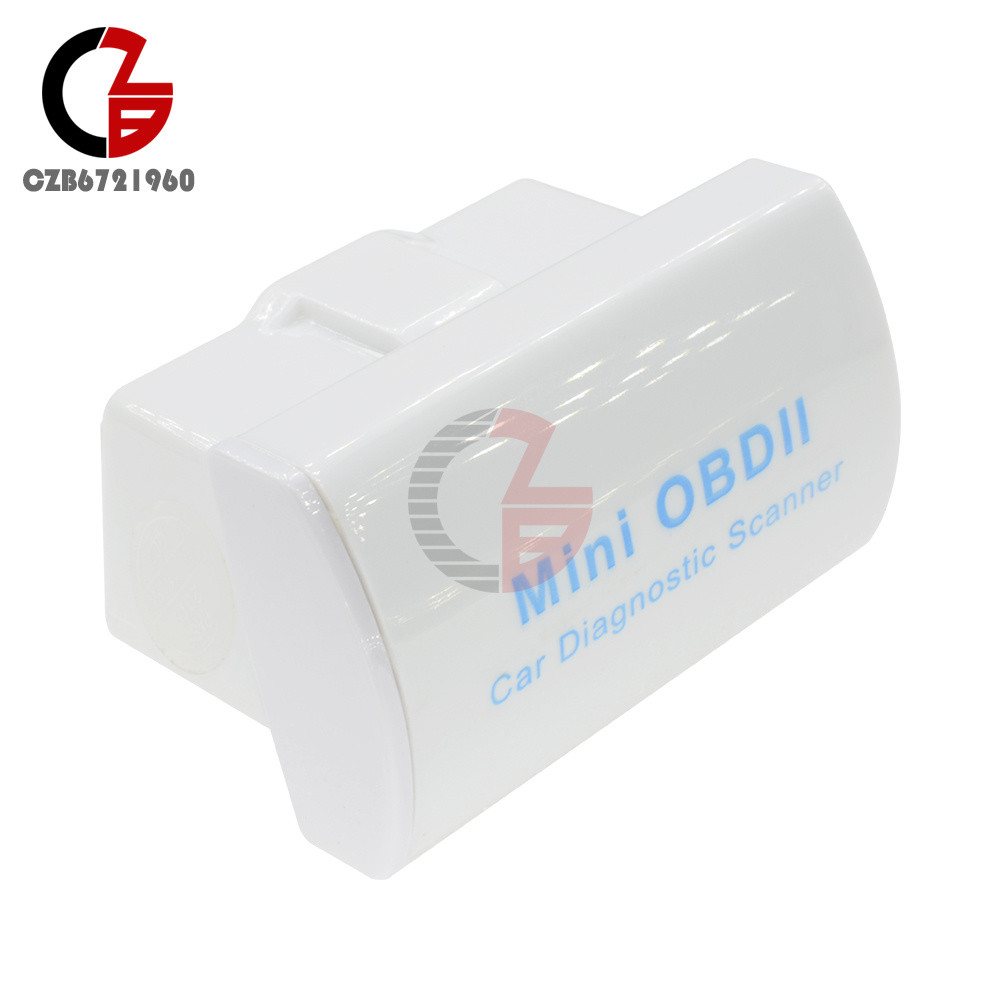

Auto Car ELM327 OBD2 V2.1 Bluetooth Diagnostic Interface Scanner New for Sale

Auto Car ELM327 OBD2 V2.1 Bluetooth Diagnostic Interface Scanner New For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Auto Car ELM327 OBD2 V2.1 Bluetooth Diagnostic Interface Scanner New:
$3.90

Auto Car ELM327 OBD2 V2.1 Bluetooth Diagnostic Interface Scanner New

Description

Bluetooth communication: 2
Software platform: Android / Windows
Working voltage: 9V~16V
Working current: 25mA
Working temperature: -40 degrees ~85 degrees
Working humidity: less than 60%
Product size: 40mm*24mm*25mm

Specification

Mini OBDII support agreement:

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

Software platform:

1 compatible software

Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN etc.;

The Android version: Torque, DashCommand, OBD Car Doctor;

Symbian version: OBDScope.

2 compatible platform

Software support platform: Windows XP, Windows 7/8, Android Symbian system

Features

1 of the world\'s smallest and most integrated chip, with independent appearance and profit, and profit and utility software copyright by CE,
FCC, Rosh certification.
2 software can perform the following operations:
Read error diagnosis codes, generic and manufacturer specific, and display their meaning (database has more than 3000 general generation
Ma Dingyi)
Remove the error code and turn off the MIL (\"check engine lights\")
Display current sensor data, including:
Engine RPM (RPM)
Calculated load value
Coolant temperature
Fuel system status
speed
Short term fuel
Long term fuel
manifold pressure
Timing advance
Intake air temperature
Air flow rate
Absolute throttle position
No short-term fuel state associated oxygen sensor voltage
Fuel system status
Fuel pressure
Fuel consumption monitoring and many other data.

The future of software features:

The graph display and log data
Freeze frame data
Continuous and not continuous oxygen detection results

Package_Contents

1 x Bluetooth V2.1 Scanner

Payment must be received in 5 business days of sale closing.
Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order.
Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day maintain high standards of excellenceand strive for 100% customer satisfaction!response is very important to us. We request that you contact us immediately BEFORE you give us neutralor negativeresponse, so that we can satisfactorily address your package need to wait 30 days(US only need 7-10 days),Please take care it.Less than 30 days,we can\'t take a refund.
If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it.
If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
