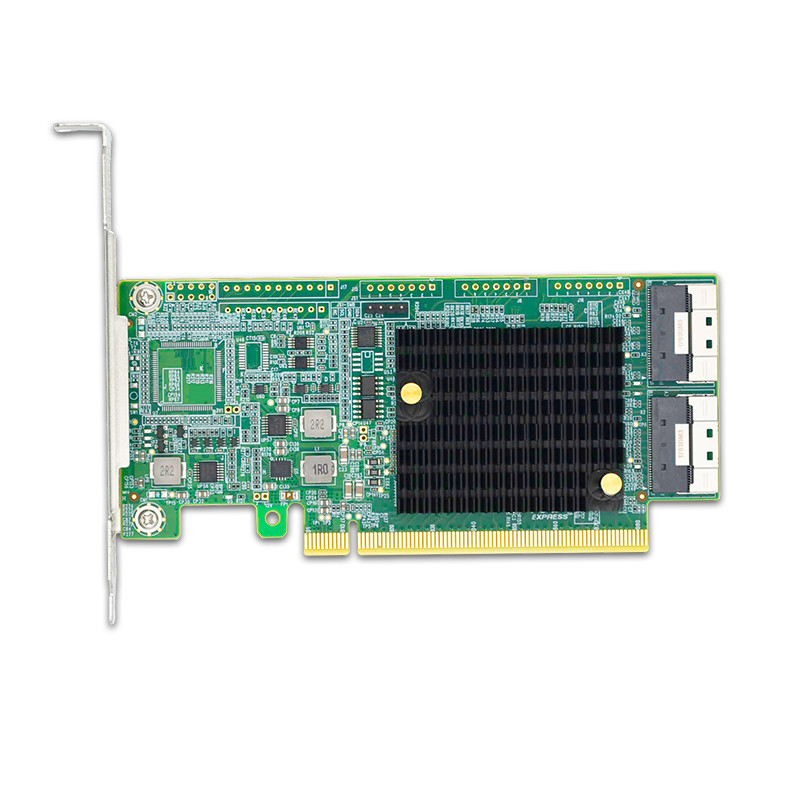

PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Retimer Adapter:
$135.00

The card is a signal retimer adapter used to secure the link budget to meet the challenging SIrequirements for long PCIe Gen4 channel comprising PCB, connector and cable. It usesadvanced signal conditioning techniques to compensate for the channel attenuation andremove the impacts of various jitter sources. It connects NVMe SSD or PCIe connectorsvia SlimSAS connector (SFF-8654).ApplicationsIt is targeted for meeting the higher performance PCIe Gen4 interconnection needs of thefollowing end applications:• Servers• Storage Appliances• Hardware Accelerators
The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIex16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD,Otherwise this card can only support PCIe x16 link width.
Features•High Performance Retimer•Compensate for channel loss up to 30dB by comprising PCB, connector and cable•Eliminate deterministic and random jitter•PCIe Standards and Compatibility•Support 100MHz reference clock output•Directly connected to PCIe 4.0 U.2 NVMe SSD by SFF-8654 8i to 2x SFF-8639 cable•Support bifurcated in quad x4 data link width configuration(CPU and BIOS bothsupport)•Support bifurcated in two x8 data link width configuration (CPU and BIOS bothsupport)•Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402 forhigh-performance storage connectivity•Eight internal lanes per SlimSAS 8i port,•PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket forsmall form factor computer.Specifications•PCI Express Base Specification, r4.0, compatible PCIe 1.0&2.0&3.0•Compliant with Intel PCIe 4.0 Retimer•Compliant with SFF-8654 Specification Version 1.2•Compliant with NVM Express 1.3•Support up to 4 NVMe SSDs

Technical Specifications

HARDWARE

Model

RTC PE4165-4I

MAX number of Device

4 internal

Bus Type

PCI Express

Main Chipset

Retimer

Compatible Device Type

U.2 (PCIe_NVMe SSD, SFF-8639)

Interface

Slim SAS SFF-8654 8i

Device Connector

2*SFF-8654(74 Pin, x8 PCIe Gen 4)

Host Bus Type

PCI Express x16

Optional Accessories

Optional Cables

Slim SAS 8i to 2x SFF-8639 Cable L=800mm

Slim SAS 8i to Slim SAS 8i Cable L=700mm

Slim SAS 8i to 2x Slim SAS 4i Cable L=800mm

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Dimension

146.5mm x 67.9mm

Product Weight

115g

PACKAGING INFORMATION

Shipping (Package)Weight

5.86 oz [166g]

WHAT'S IN THE BOX

Included in Package

1 -PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Retimer Adapter

1 -Low-profile bracket

1 -Full-height bracket (installed)
