Supermicro Super P4DC6+ Dual Socket 603 motherboard. Intel 860 chipset. Supports:
$276.00

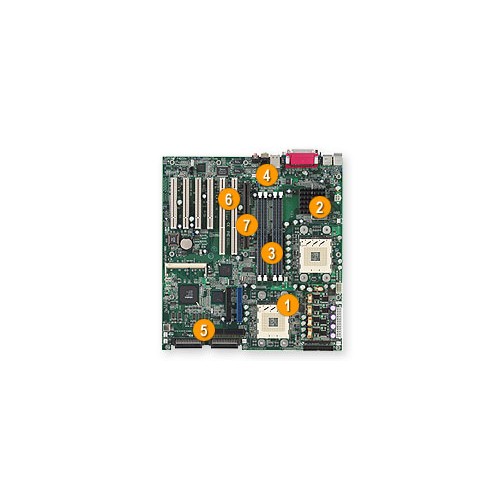

Supermicro Super P4DC6+

Key Features1. Dual Intel Xeon Support up to 2.4 GHz
2. Intel 860 Chipset
3. Up to 2GB 600/800MHz RDRAM
4. 1x Intel 82559 10/100 Ethernet Controller
5. Adaptec AIC-7899W dual channel Ultra160 SCSI
6. 2 x 64-bit PCI expansion slots
7. 4xAGP Pro slot
8. Zero Channel RAID Support

Rear Panel I/O Ports:
- Up to 4 USB ports
- Infrared 1 Infrared port header
- Serial Ports 2 Fast UART 16550 serial ports
- Parallel Port 1 ECP/EEP parallel port
- Floppy 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
- Keyboard / Mouse PS/2 keyboard and mouse
Internal I/O Interface:
- Dual EIDE channels support up to four UDMA IDE devices Supports UDMA Mode 5, PIO Mode 4, and Flash EEPROM with Award BIOS
- Plug and Play (PnP) SMBIOS 2.3 APM 1.2 DMI 2.1 ACPI 1.0 RTC (Real Time Clock) Wakeup BIOS rescue hot keys Hardware BIOS virus protection

Motherboard Specifications

Model:
- Supermicro Super P4DC6+ dual socket 603 xeon motherboard
Processor Support:
- Supports up to two Intel Xeon processor(s) with 512KB of integrated Advanced Transfer Cache up to 2.4GHz
- Dual mPGA603 ZIF 860 chipset MCH + ICH2 + P64HInput / system bus
Memory:
- Four 184-pin RIMM socket
- Supports up to 2 GB of 600/800MHz RDRAM memory
- Dual channel memory bus Memory must be populated in pairs
Expansion Slots:
- 4x 32-bit 33MHz PCI(5V) slots
- 2 x 64-bit PCI expansion slots
- 4xAGP Pro slot
On-Board Audio:
- AC'97 audio CODEC
On-Board LAN:
- 1x Intel 82559 10/100 Ethernet Controller
Special Features:
- ACPI/APM Power Management Main Switch Override Mechanism Wake-On-Ring (WOR) header Wake-On-LAN (WOL) header Suspend to RAM (STR) Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode control for AC power loss recovery Internal/External modem remote ring-on
Form Factor:
- Extended ATX
  Dimensions 12" x 13" (30.5cm x 33cm)
