Arducam CSI to USB UVC Camera Adapter Board for Raspberry Pi HQ Camera, 12.3M...:
$67.21

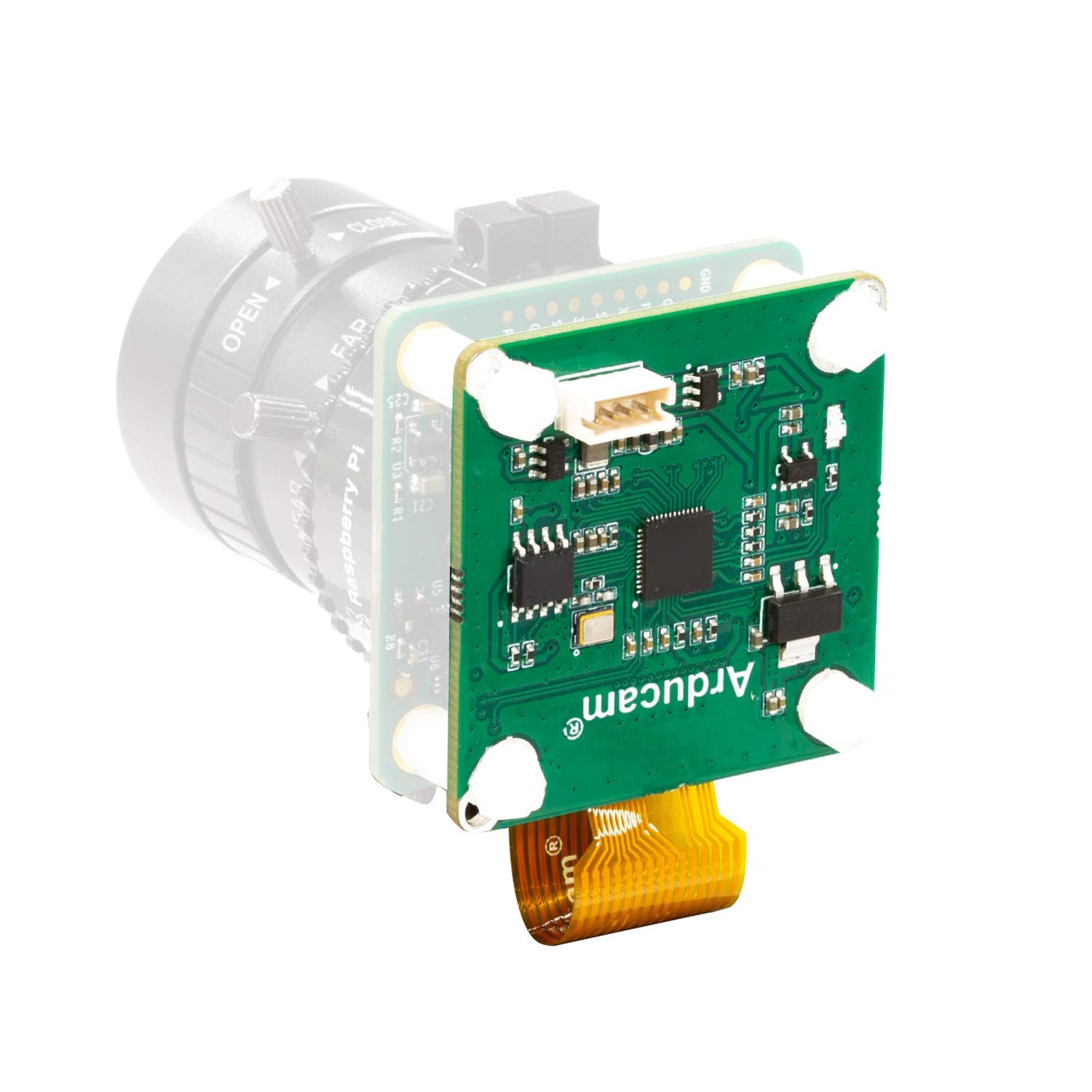

Arducam CSI to USB UVC Camera Adapter Board for Raspberry Pi HQ Camera, 12.3MP IMX477 Camera Board

Make IMX477 UVC-Compliant: This CSI to USB adapter board can extend your 12.3MP IMX477 High Quality Camera work as a webcam, just connect this adapter with camera board to PC computer, laptop, Android device, Raspberry Pi or Jetsons via USB port without extra drivers to be installed.
With Audio: This adapter makes your IMX477 camera board no longer be silent because of the built-in single microphone, so as to capture video with audio.
Ultra HD and High Frame Rates: It has no effect on the image quality and frame rates at all; max. still resolution 4056(H) x 3040(V); MJPG 10fps@4056x3040, 20fps@4K(3840x2160), 30fps@2592x1944/2560x1440, 60fps@1080P, 100fps@720P.
Easy to Assemble: Board dimension is 38mmx38mm, same sized with IMX477 HQ camera board, and compatible location and pitch of mounting hole, just connect and assemble the adapter board with the camera board, with the included camera cable and accessories.
Application: This adapter can work with 12.3MP Raspberry Pi Official High Quality Camera, highly recommended for a home video surveillance system, monitoring 3D Printer, and other vision applications demand IMX477 camera.

This CSI to USB adapter board aims to break the limits of applications of Raspberry Pi IMX477 High Quality camera and Arducam IMX477 camera series. Just connect this adapter with the camera board to PC computer, laptop, Android device, Raspberry Pi or Jetsons via USB port and it can work as a webcam. No longer be anxious about installing the driver! It makes your 12.3MP IMX477 High Quality Camera UVC-compliant, the native UVC drivers of Windows, Linux and Mac shall be compatible with them so that it does not require extra drivers to be installed. SPECIFICATIONSSupports Raspberry Pi Official High Quality camera and Arducam IMX477 HQ camera series. Data Format: MJPG Frame Rate: 10fps@4032x3040; 20fps@3840x2160; 30fps@2592x1944/2560x1440; 60fps@1080P; 100fps@720P Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure. System Compatibility: Win7/8/10, Linux, Mac and Android with UVC Signal Input: 22 Pin 0.5mm Pitch CSI connector Signal Output: 1.5mm Pitch ZH connector ZHR-4 Voltage Input: DC 5V Connecting Port Type: USB2.0 Working Current: 200mA Operating Temp. : -4°F~167°F (-20°C~+75°C) Overall Dimension: 38mm x 38mm Hole Pitch: Compatible with 34mm x 34mm, 30mm x 30mm, 29mm x 29mm. Cable Length: Default 3.3ft(1m) PACKING CONTENTS1pcs CSI-UVC adapter board 1pcs 3.8cm 22pin to 15pin camera cable for Raspberry Pi Official High Quality Camera 1pcs 8cm 22pin to 22pin camera cable for Arducam IMX477 HQ camera series1pcs 1m/3.3ft USB2.0 camera cable 1 set accessories of standoff, screws, and nuts
