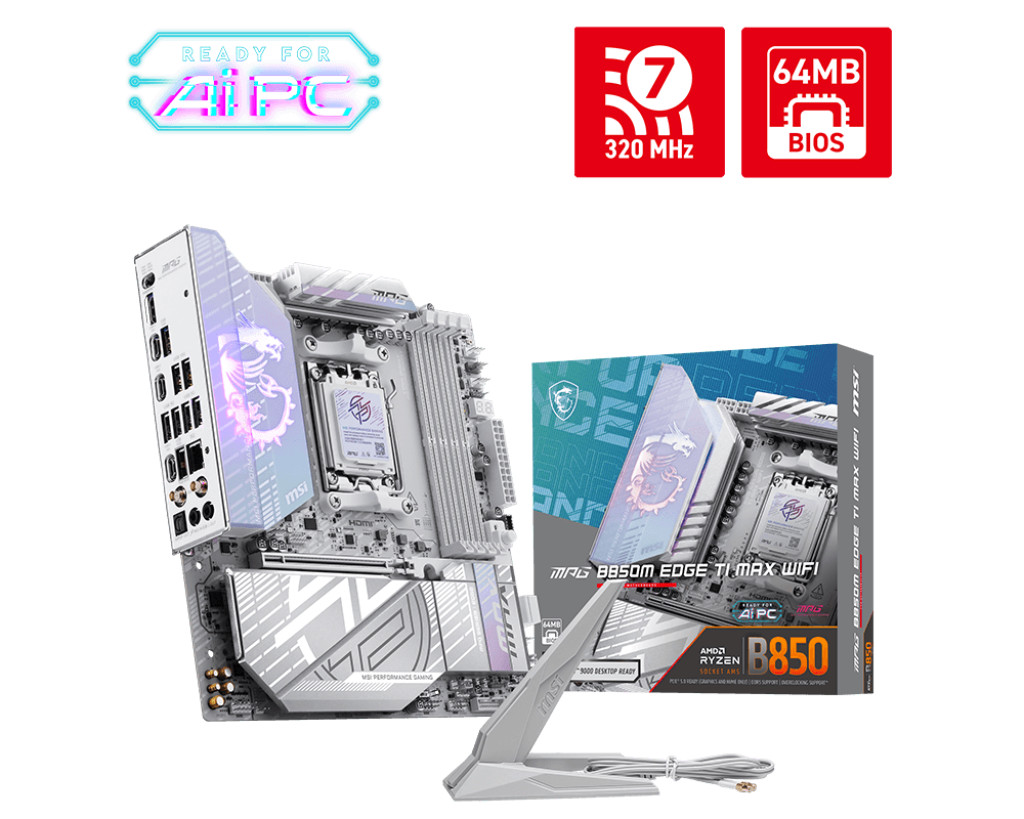

MSI MPG B850M EDGE TI MAX WIFI motherboard:
$294.49

ChipsetAMD B850CPUSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory 支持 DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have single-sided latche.

Onboard Graphics1x HDMI™
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot1x PCI-E x16 插槽（数量）
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

AudioRealtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF outputStorage4x M.2 (Qty)
M.2_1 源 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 源 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 源 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 源 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G (Qty)

M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

M.2_3 slot (From B850 chipset)
• Supports up to PCIe 4.0 x4

M.2_4 slot (From B850 chipset)
• Supports up to PCIe 4.0 x4

RAID• Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
*RAID 5 and RAID 10 configurations are only supported by Ryzen™ 9000/ 7000 series processors.USB4x USB 2.0 (前置)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
3x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)LAN1x Realtek® 8126 5G LAN

Internal IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x PUMP_SYS Fan
4x System Fan
1x ARGB+FAN+USB2.0 Header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 接口
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C portsWIRELESS LAN & BLUETOOTHWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

LED FEATURE4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ Memory Detection LEDBACK PANEL PORTS

Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-C
USB 10Gbps Type-A
USB 10Gbps Type-C
Optical S/PDIF Out

OPERATING SYSTEMSupport for Windows® 11 64-bitOn 28-May-2026 at 08:59:45 BST, seller added the following information:
