New PCI 32bit to 3 SATA+1 IDE combo RAID Card Adapter VIA6421 for XBOX360 US For Sale

New PCI 32bit to 3 SATA+1 IDE combo RAID Card Adapter VIA6421 for XBOX360 US
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

New PCI 32bit to 3 SATA+1 IDE combo RAID Card Adapter VIA6421 for XBOX360 US:
$18.79

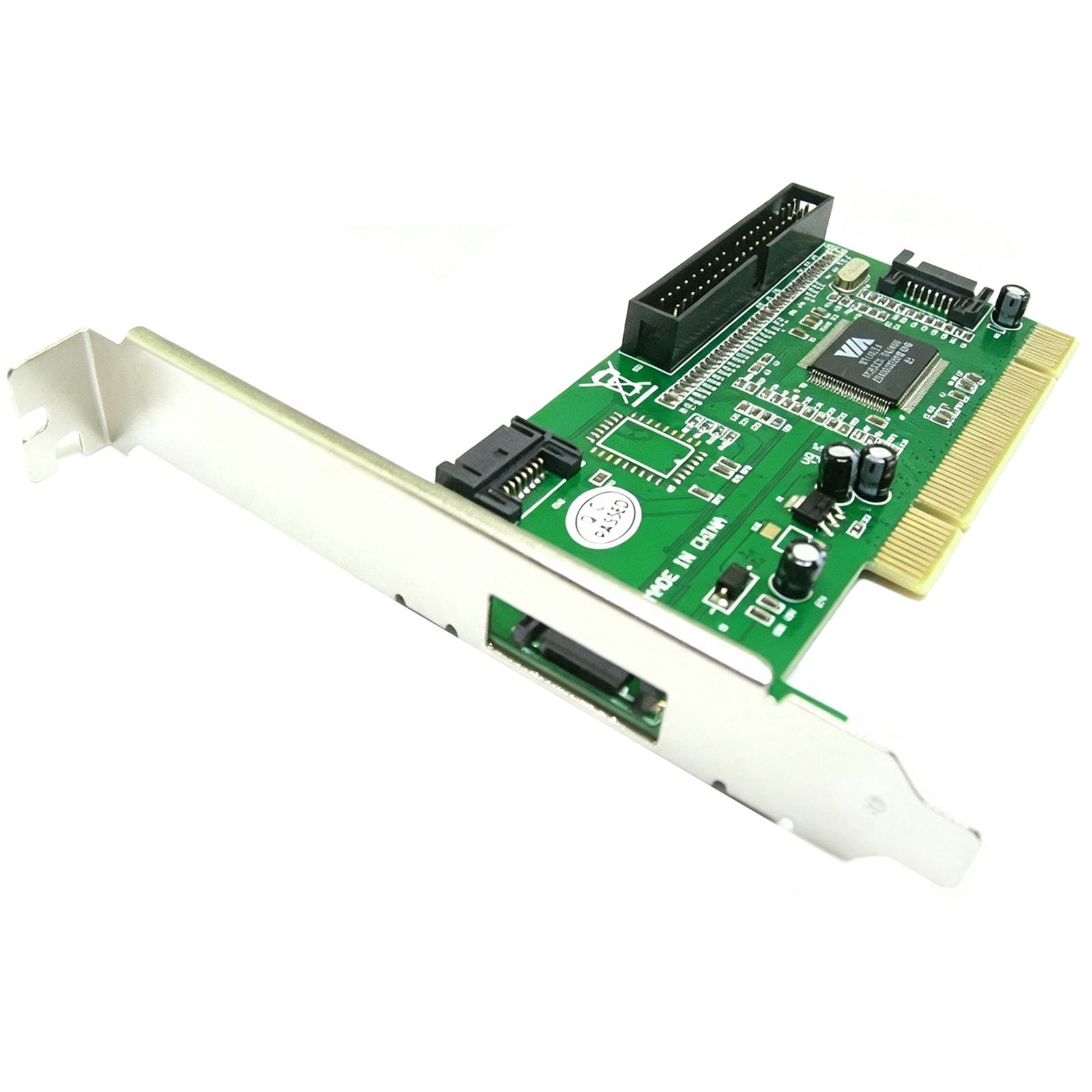

PCI to 3 Ports SATA + IDE Combo Controller Card Adapter Converter VIA6421 Chip Description： 3 SATA port and 1 IDE 40p port allow to connect more devices to your computer. Stable and reliable chip VIA VT6421 chipset. PCI specification revision 2.1 compliant with 33Hz & 32-bit data. Serial ATA specification revision 1.0 compliant. UDMA6 ATA/133 specification compliant. Backwards compatible with Ultra ATA/100,Ultra ATA/66.Ultra ATA/33, EIDE/Fast ATA. 3 SATA port (2 internal and 1 external, external one shares channel with one of internal one) and 1 internal IDE 40pin port. Data transfer rate up to 150MB/sec (1.5Gbps) per SATA channel. Data transfer rate up to 133MB/sec per IDE channel. Supports 2 independent Serial ATA channels. Supports 2 IDE channels and connects up to 2 IDE devices. Features independent 256-byte FIFOs per channel for host reads and writes. Large LBA support for drives above 137GB. Supports PCI IRQ sharing to save valuable resources for other I/O expansion cards. Supports PCI plug and play. Operating System: Windows 98/SE, ME, 2000, NI4.0, 2003, XP, Vista & Windows7.
Notice:The card does not support SLIM machine drive began after 9504 , such as 00250401 , then please change or AMD motherboard or INTEL ICH10 SATA ports, recommend the latter. Package content: 1x Brand New 3 Port SATA & 1 Port IDE PCI Expansion I/O Card.
Buy Now
