Vintage Media Vision Jazz 16 ISA Sound Card Yamaha OPL3 WaveTable TKE.9504 DOS:
$42.00

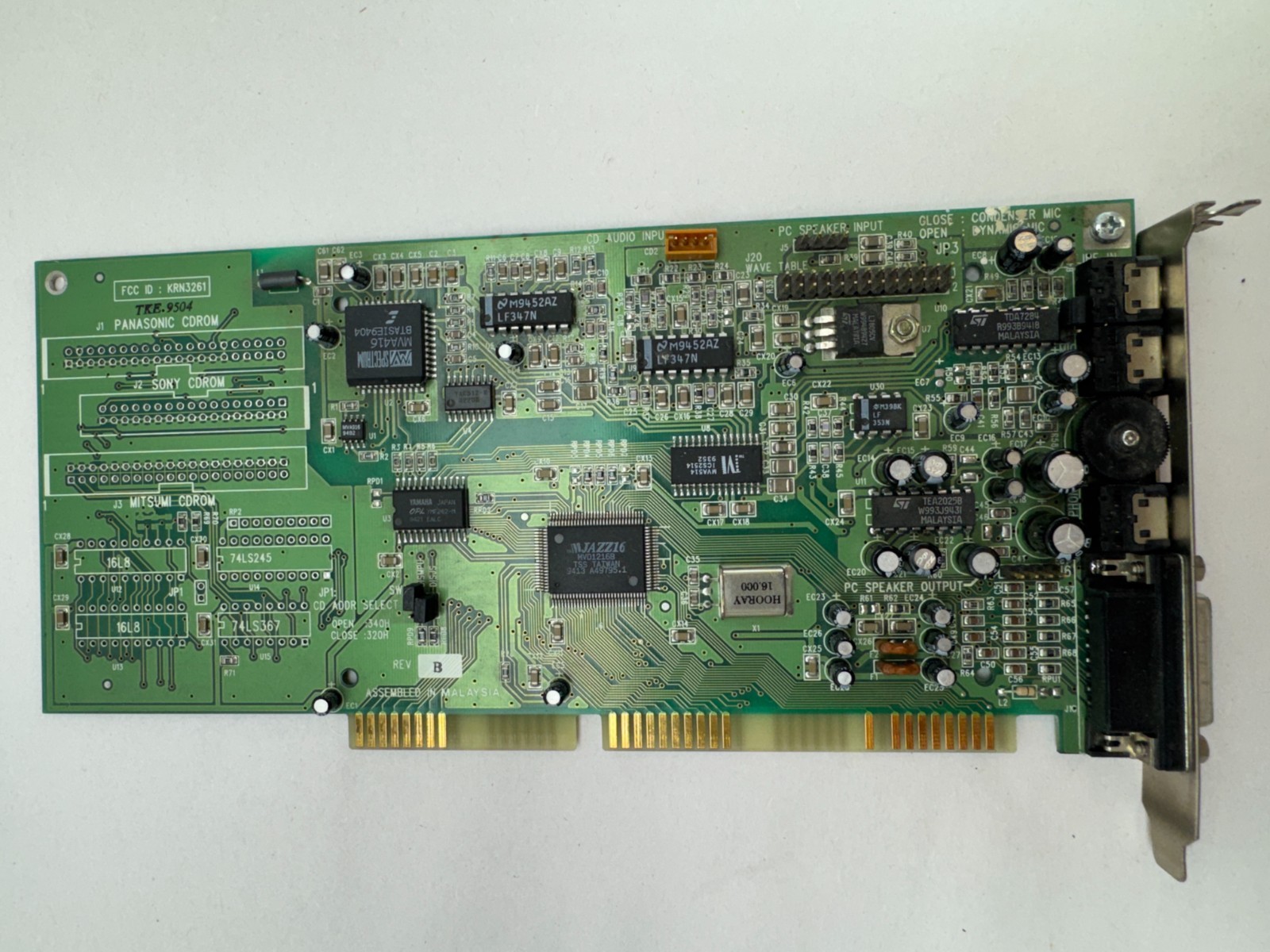

Vintage Media Vision Jazz 16 16-Bit ISA Sound Card with Yamaha YMF262-M OPL3 & WaveTable Header

Authentic vintage 16-bit ISA multimedia sound card powered by the Media Vision Jazz 16 chipset (MVD1216B / MVA416). Highly desirable for retro PC gaming builds (386, 486, Pentium, DOS, Windows 3.1x / 95 / 98) featuring a genuine discrete Yamaha YMF262-M OPL3 FM synthesis chip for authentic retro sound playback. Equipped with an onboard 26-pin WaveTable daughterboard expansion header (J20), integrated audio amplifier, manual volume wheel dial, 3.5mm audio jacks, and standard DB-15 Game / MIDI port.

Key Specifications & Features:

Bus Interface: 16-Bit ISA
Main Chipset: Media Vision Jazz 16 (MVD1216B / MVA416)
FM Synthesis: Authentic discrete Yamaha YMF262-M (OPL3) chip
WaveTable Support: 26-Pin WaveTable header (J20) for WaveBlaster-compatible daughterboards
Board Markings: FCC ID KRN3261 / TKE.9504 / REV B
External Bracket Connections:
- 15-Pin DB-15 Game / Joystick / MIDI Port
- 3.5mm Speaker / Headphone Out
- 3.5mm Microphone In
- 3.5mm Line In
- Analog Rotary Volume Control Wheel
Internal Headers: CD Audio Input, PC Speaker Input, Wave Table header
Ideal For: Classic MS-DOS gaming, vintage computer builds, AdLib / Sound Blaster Pro compatible sound
