WD My Book Studio PCB 2060-701469-002 REV A Controller 2061-701469 GALAXY 2T PCB:
$29.95

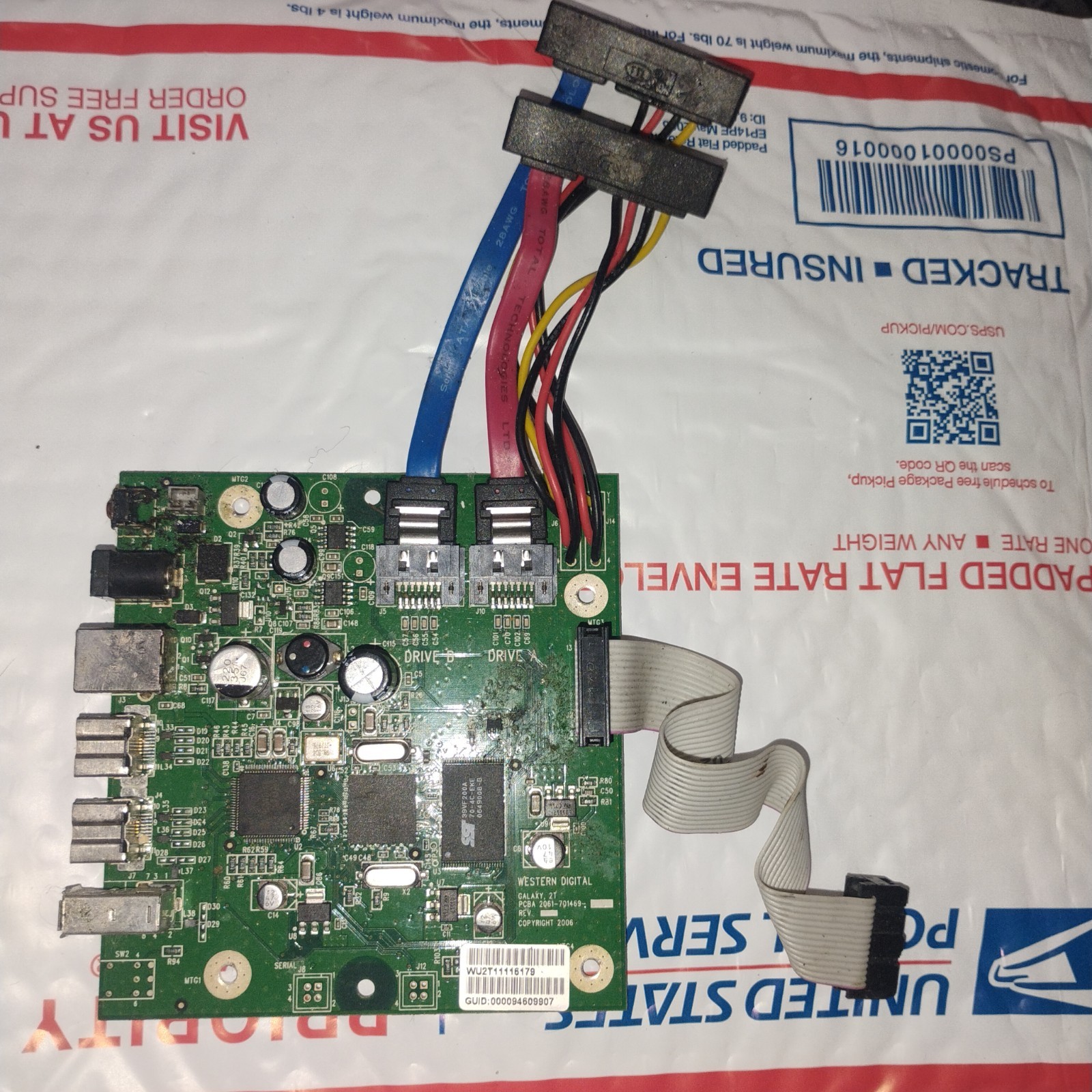

This is a Western Digital (WD) Galaxy 2T PCBA, a specialized bridge controller board taken from a WD My Book Studio Edition II external desktop storage system. Its primary job is to manage communication between two internal hard drives and a computer.

Visual & Technical Breakdown

Internal Connections: It features two standard SATA data and power connectors (labeled Drive A and Drive B), allowing it to control a dual-drive RAID setup.

External Ports: On the left side, it includes various legacy high-speed data ports typical of professional storage from the mid-2000s, such as FireWire 800, FireWire 400, and eSATA, along with a DC power jack.

Core Components: The board is populated with several logic chips, including a dedicated RAID controller, and a BIOS/ROM chip (often labeled U12) which contains the drive\'s unique configuration data.

Build: It is a multi-layered green printed circuit board (PCB) featuring both surface-mount (SMD) and through-hole components like electrolytic capacitors and a crystal oscillator for timing.

Identifying Marks

Part style=\"margin-top:0; margin-bottom:0;\">

Barcode Serial: WU2T11116179 [Image]
