Waveshare Luckfox PicoKVM Ext Expansion Board Compatible With PCIe ×1/×4/×8 /×16:
$14.78

Description

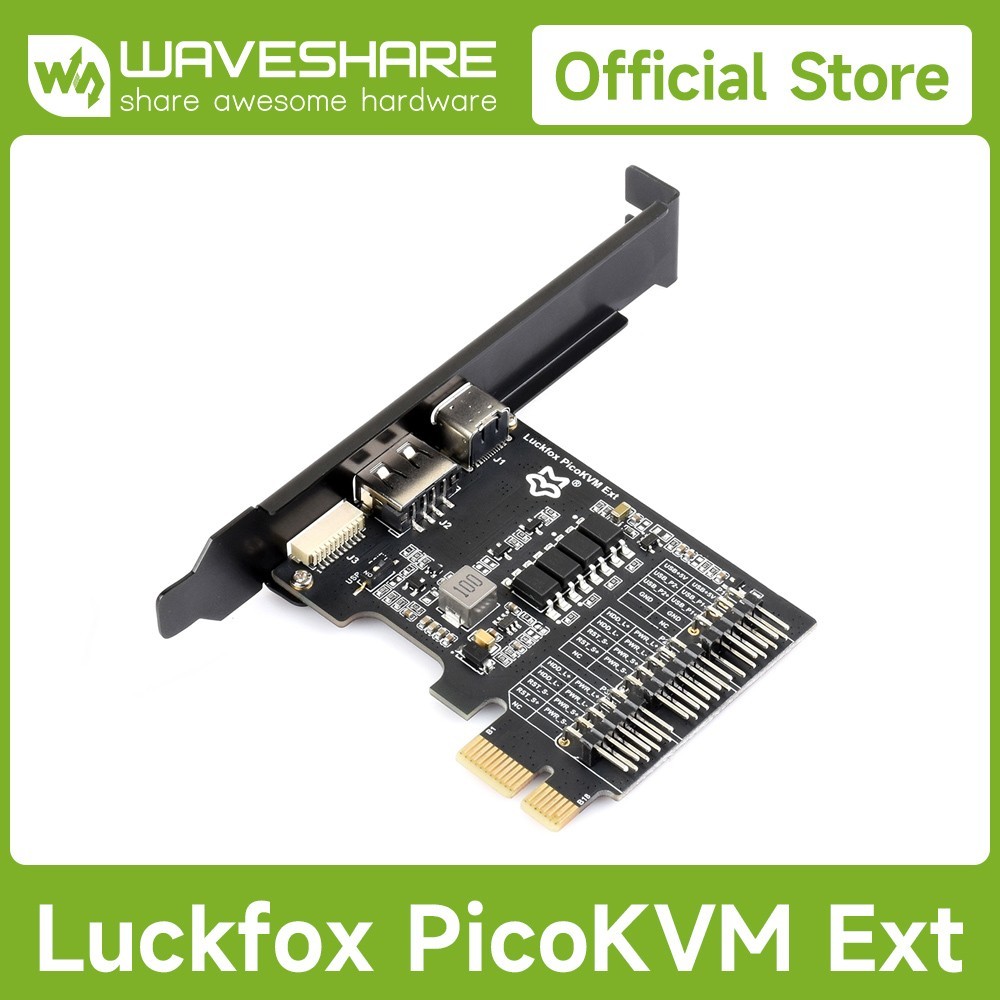

Luckfox PicoKVM Ext Expansion Board, Compatible With PCIe ×1 / ×4 / ×8 / ×16 Slots, Adapting Motherboard USB Ports, Works With Luckfox PicoKVM For Remote Power ManagementLuckfox PicoKVM Ext

Works WithLuckfox PicoKVMFor Remote Power Management

PCIe Interface Compatible

Supports motherboards with PCIe ×1 / ×4 / ×8 / ×16 slot

* Note: the PCIe interface is for 12V power supply only.

Onboard 2 × Front panel header

Allows simultaneous connection to the motherboard front panel header and the chassis front panel, enabling shared power control

Supports PCIe or USB power supply

Two Power Supply Modes selectable via onboard Switch

Adapting motherboard USB ports

Adapting USB-A & USB-C ports via motherboard USB header, for connecting Luckfox PicoKVM or other USB devices

Web Control

Works with Luckfox PicoKVM, remotely control the computer to power on/off, restart, or force shutdown, and retrieve power status

Installation Example

Includes a full-height metal bracket. Compact design compatible with various chassis types, no external space required

* theLuckfox PicoKVMis NOT included, please refer to the package content for the detailed part list.

What's On Board

USB-C port
Adapting from motherboard USB header USB_P1
USB-A port
Adapting from motherboard USB header USB_P2
IO control connector
Power supply selection switch
USB or PCIe power supply switchable

PCIe interface
for 12V power supply only
Motherboard front panel headers
connects to motherboard front panel and chassis front panel
Motherboard USB header

IO Control Connector Pin Definition
outline dimensions

Certificate of AuthorizationResources & Services
Package Content

Weight:0.063 kg

Luckfox PicoKVM Ext (with full-height metal bracket) x1
Motherboard USB extension 9PIN cable x1
Motherboard panel extension 9PIN cable x1
SH1.0 10PIN cable ~1m x1
