Gigabyte Datto MD70-HB0 DDR4 EATX Server Motherboard w/ 2X Intel Xeon E5-2620 v3:
$295.00

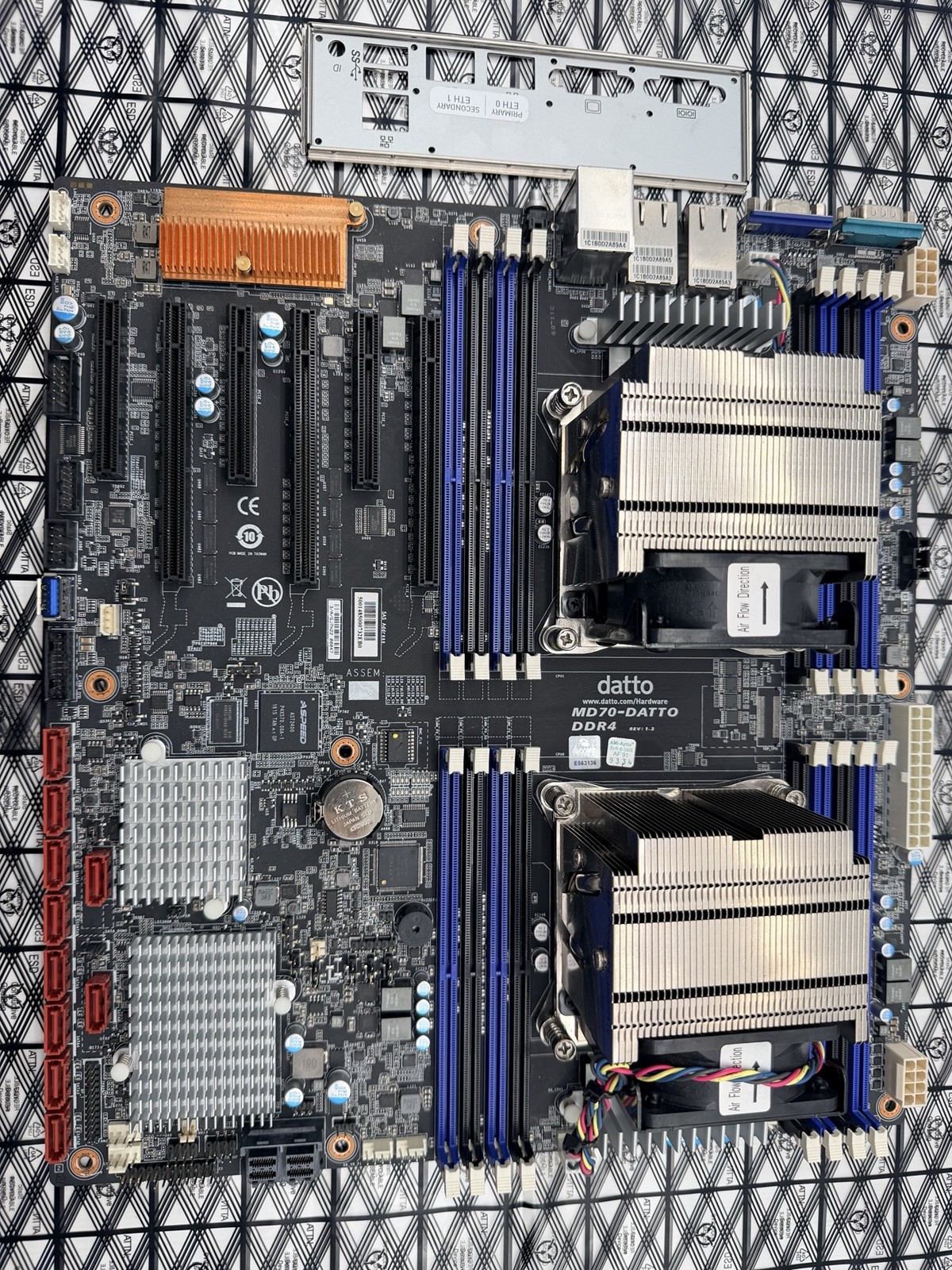

Gigabyte Datto MD70-HB0 Motherboardw/ 2x Intel Xeon E5-2620 v3 CPU's and HeatsinksForm FactorE-ATX / SSI EEB
305W x 330D (mm)CPUIntel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.Socket2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboardChipsetIntel® C612Memory16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHzLAN2 x 10GbE BASE-T LAN ports (Intel® X540)
1 x 10/100/1000 management LANVideoIntegrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bppAudio-SAS2 x Mini-SAS HD connectors (for 8 x SAS 12Gb/s)
LSI SAS 3008 controllerSATA8 x SATA III 6Gb/s ports
2 x SATA III 6Gb/s ports supporting SATA DOMRAIDIntel® SATA RAID 0/1/10/5
LSI® SAS RAID 0/1/1E/10Expansion Slots3 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x8 (Gen2 x4 bus) slot

or (via PCIe switch):
1 x PCIe x16 (Gen3 x16 bus) slot
2 x PCIe x16 (Gen3 x8 bus) slots
2 x PCIe x8 (Gen3 x8 bus) slots
1 x PCIe x8 (Gen2 x4 bus) slotInternal I/O1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
2 x Mini-SAS HD connectors
1 x USB 3.0 vertical type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
2 x SATA SGPIO headers
1 x Chassis intrusion header
1 x LSI UART header
2 x JTAG headers
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM jumpers
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x S3 mask jumperRear I/O2 x USB 3.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LEDTPM1 x TPM headerOS CompatibilityWindows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1Board ManagementAspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)

PSU Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
