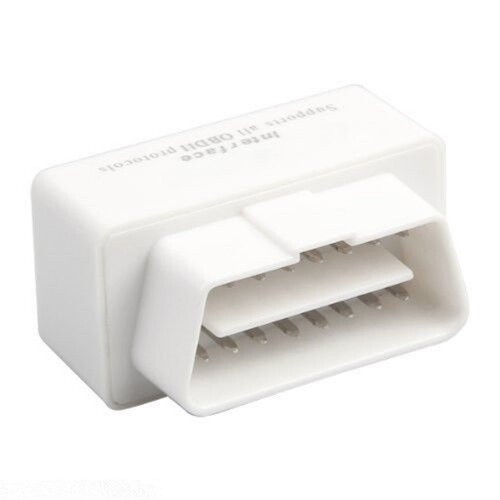

V2.1 ELM327 OBD2 Bluetooth Diagnostic Scanner Car Detector Tester Tool:
$4.96
Product Details
DescriptionBluetooth communication: 2
Software platform: Android / Windows
Working voltage: 9V~16V
Working current: 25mA
Working temperature: -40 degrees ~85 degrees
Working humidity: less than 60%
Product size: 40mm*24mm*25mm
Specification
Mini OBDII support agreement:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Software platform:
1 compatible software
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN etc.;
The Android version: Torque, DashCommand, OBD Car Doctor;
Symbian version: OBDScope.
2 compatible platform
Software support platform: Windows XP, Windows 7/8, Android Symbian system
Features
1 of the world's smallest and most integrated chip, with independent appearance and profit, and profit and utility software copyright by CE,
FCC, Rosh certification.
2 software can perform the following operations:
Read error diagnosis codes, generic and manufacturer specific, and display their meaning (database has more than 3000 general generation
Ma Dingyi)
Remove the error code and turn off the MIL ("check engine lights")
Display current sensor data, including:
Engine RPM (RPM)
Calculated load value
Coolant temperature
Fuel system status
speed
Short term fuel
Long term fuel
manifold pressure
Timing advance
Intake air temperature
Air flow rate
Absolute throttle position
No short-term fuel state associated oxygen sensor voltage
Fuel system status
Fuel pressure
Fuel consumption monitoring and many other data.
The future of software features:
The graph display and log data
Freeze frame data
Continuous and not continuous oxygen detection results
Package_Contents
1 x Bluetooth V2.1 Scanner
